ColorJet Printing
ColorJet 3D printers are some of the fastest on the market, with turnaround in as little as one day. They also offer the widest range of colors in the industry, with over 390,000 options to choose from.

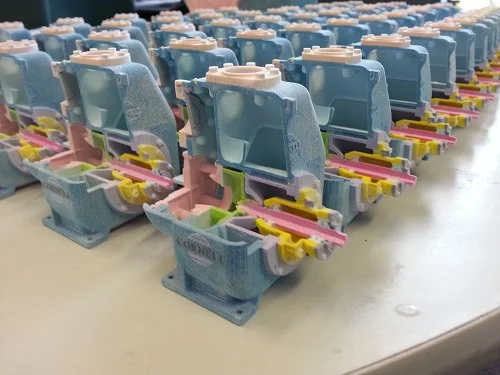

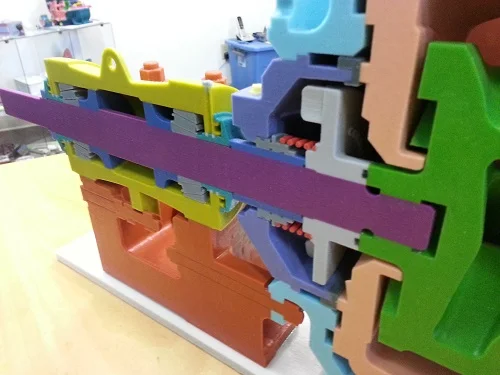

ColorJet printing is ideal for creating eye-catching models, marketing displays or cross sections. Although its ceramic-like composite is not strong enough for most industrial applications, it is a good option for quickly creating inexpensive form/fit prototypes. For industrial-strength 3D printed plastic, check out our Multi Jet Fusion printing services or our 5-Minute Buyer’s Guide to learn about all of our services.
ColorJet 3D Printing, On Demand
Get a quote that works for you with our Instant Quote and Classic Quote tools. Instantly quote and order 3D printed parts for Multi Jet Fusion, FDM, PolyJet, ColorJet and Direct Metal with Instant Quote, or use Classic Quote to get a quote in under 24 hours for all of our manufacturing and engineering services!
ColorJet Design Guidelines
ColorJet prints go though two-stages of post-processing:
1) The parts are taken off the printer, and any excess powdered material is removed by compressed air. Parts in this stage are delicate and prone to breakage. For this reason, it is important to adhere to guidelines for detail thickness.
2) Once all excess material is removed, the parts are then infused with cyanoacrylate (AKA superglue) to give them rigidity and strength. Once this is complete, the parts have reached their full strength and are much less likely to break.
Please note that these are are guidelines, not hard-and-fast rules. Follow these, and you should be in pretty good shape. We'll let you know if we see any problems with your design.
| Parameter | Inches | Milimeters |
| Maximum Part Size | 15 x 10 x 8* | 381 x 254 x 203* |
| Minimum Supported Wall Thickness | 0.080 | 2.00 |
| Minimum Unsupported Wall Thickness | 0.060 | 1.50 |
| Minimum Supported Bosses | 0.080 | 2.00 |
| Minimum Unsupported Bosses | 0.060 | 1.50 |
| Minimum Embossed Detail (Height and Width) | 0.015 | 0.40 |
| Minimum Engraved Detail (Height and Width) | 0.015 | 0.40 |
| Clearance Between Parts/Bodies | 0.020 | 0.50 |
*Build volume is 10 x 15 x 8 inches. Larger models can be made in sections and pieced together after printing.
Material Properties
This data is provided for the convenience of our customers. It does not on its own represent a sufficient basis for any part design, nor does it provide any agreement about or guarantee the specific properties of a product or part or the suitability of a product or part for a specific application. It is the
responsibility of the producer or customer of a part to check its properties as well as its suitability for a particular purpose. This also applies to any possible intellectual property rights as well as regional laws and regulations. The data are subject to change without notice.
| Property | Imperial (KSI) | Metric (MPa) |
| Elastic Modulus | 1,300 | 9450 |
| Tensile Strength | 2.06 | 14.20 |
| Flexural Strength | 4.51 | 31.1 |
| Flexural Modulus | 1,030 | 7163 |
| Elongation at Break | 0.23% | 0.23% |
